| Supplier of UltraHigh Accuracy
Coordinate Measuring Machines and Ultrasonic Scanners! |
|
| Continual improvement in the manufacture of products is critical to the success of manufacturers
in virtually every industry. That is why companies like yours continually look for better, more accurate,
more reliable, faster and more cost-effective measuring machines to monitor the process of producing high-quality
components and products. |

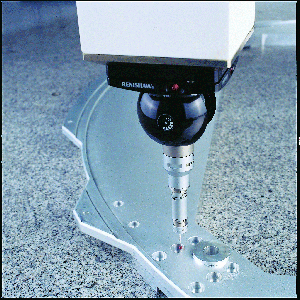

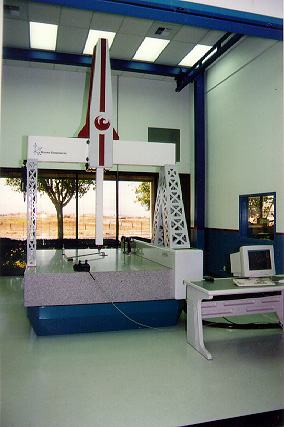

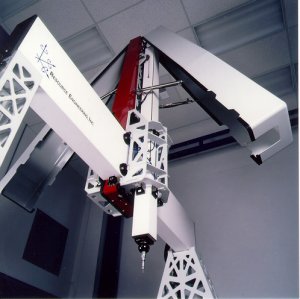

| Resource Engineering, Inc. (REI) is able to provide your company with the advanced measuring technology and
expertise required to find effective solutions to your most critical manufacturing challenges. The Resource
Engineering family of vertical and horizontal spindle coordinate measuring machines (CMM) will provide your
company with an exceptional tool for absolute verification of process control. |
 |
 |
 | |
SAMPLE SPECIFICATIONS |
| Detail | PHX20.15.12 | PHX25.15.15 | PHX30.18.15TD | PHX35.20.15TD | PHX40.20.20TD |
| X | 2000mm/79" | 2500mm/98" | 3000mm/118" | 3500mm/138" | 4000mm/157" |
| Y | 1500mm/59" | 1500mm/59" | 1800mm/71" | 2000mm/79" | 2000mm/79" |
| Z | 1200mm/48" | 1500mm/59" | 1500mm/59" | 1500mm/59" | 2000mm/79" |
| Resolution | 0.0001mm/0.000004" |
| Repeatability | 0.003mm/0.00012" | 0.004mm/0.00016" |
| Linear | X | 0.006/0.00032" | 0.008/0.00032" | 0.009/0.00035" | 0.011/0.00043" | 0.012/0.00048" |
| Accuracy | Y | 0.005/0.00020" | 0.005/0.00020" | 0.005/0.00020" | 0.006/0.00024" | 0.006/0.00024" |
| B89.4.1M | Z | 0.004/0.00016" | 0.005/0.00020" | 0.005/0.00020" | 0.005/0.00020" | 0.006/0.00024" |
| Volumetric Accuracy B89.4.1-1997 | 0.010/0.00039" 900mm/35" Ballbar | 0.012/0.00047" 900mm/35" Ballbar | 0.014/0.00055" 900mm/35" Ballbar | 0.017/0.00067" 900mm/35" Ballbar | 0.020/0.00079" 900mm/35" Ballbar |
| U1 (VDI2617)* | 1.5+L/400 | 1.5+L/350 | 2.0+L/300 | 2.5+L/300 | 2.5+L/300 |
| U3 (VDI2617)* | 2.0+L/300 | 2.0+L/250 | 2.5+L/200 | 3.0+L/200 | 3.0+L/200 |
| Linear Vel. | 400mm per second/16" per second] |
| Max. ACC. | 1000mm per sec.2/40" per second2 ] |
| Max. DeACC. | 1000mm per sec.2/40" per second2 ] |
| Weight | 7,831 Kg. | 9,202 Kg. | 16,376 Kg. | 25,416 Kg. | 27,860 Kg. |
| Approx. | 17,229 Lbs. | 20,245 Lbs. | 36,029 Lbs. | 55,917 Lbs. | 61,293 Lbs. |
|
| *L is measured length in millimeters, Result is in micrometers. |
 |
|
